Panels get most of the attention in a cladding project, but it is the finishing trim that actually makes the job look complete. Without the right trim in the right place, cut edges stay exposed, joins stay visible, and water can find its way behind the panel where it should never reach. Getting to grips with the different types available makes it far easier to plan a project properly before you order anything.

This guide walks through each type of finishing trim, what job it does, and where in a room it belongs, so you can put together a complete parts list before you start cutting panels.

It is easy to underestimate how many different trims a single bathroom or kitchen might need. A modest shower enclosure can easily call for a starter trim, two internal corners, and a coving or quadrant piece at the ceiling, all before a single wall panel goes up.

Why Every Cladding Project Needs a Finishing Trim

PVC wall panels are cut to size for almost every project, which leaves raw edges at the start, end, and corners of a run. A finishing trim covers those edges, giving the whole wall a clean, factory made appearance rather than one that looks like a DIY job in progress.

Beyond looks, trims also protect the cut edge of the panel itself. An exposed edge left unprotected in a wet room can allow moisture to creep behind the cladding over time, which is exactly the kind of hidden damage building regulations on resistance to moisture are designed to guard against, and a well chosen finishing trim is designed to prevent.

There is also a practical installation benefit. Most trims work on a simple slot and glue system, so panels click into the channel rather than needing to be measured and cut to a perfect mitred angle by hand, which makes the whole job far more forgiving for a first time DIYer.

Starter Trim: Where Your Cladding Begins

Every panel run has to start somewhere, and a starter trim, sometimes called a J trim because of its cross-section shape, gives that first panel a solid, straight edge to slot into. It is usually fixed at a doorway, window reveal, or wherever the cladding meets an existing surface like tiling or plasterboard.

Without this type of finishing trim, the first panel in a run would have a visible cut edge on show, which undermines the finish no matter how neatly the rest of the wall is fitted. It takes only a few minutes to fit but sets the standard for the whole job.

It is worth measuring the starting point carefully before fixing this trim, since every other panel in the run will follow the line it sets. A starter trim fixed even a few millimetres out of level can throw the whole wall slightly askew by the time the last panel goes in.

Internal and External Corner Finishing Trim

Corners are one of the trickiest parts of any cladding project to get right without the correct trim. An internal corner finishing trim covers the join where two walls meet at a standard 90 degree angle, such as the corner of a shower enclosure or alcove.

An external corner finishing trim does the same job in reverse, wrapping around an outward facing corner such as a boxed-in pipe or the edge of a stud wall dividing a room. Both types simply slot over the cut panel edges and glue into place, with no mitring or angled cutting required.

Getting the wrong type at a corner is one of the most common ordering mistakes on a first cladding project, so it is worth sketching out the room and marking which corners are internal and which are external before placing an order.

A quick way to check is to stand in the doorway and look at each corner from inside the room. If the corner points towards you, it is internal. If it points away, out into the room, it is external. This small habit avoids the most common ordering error on a first project.

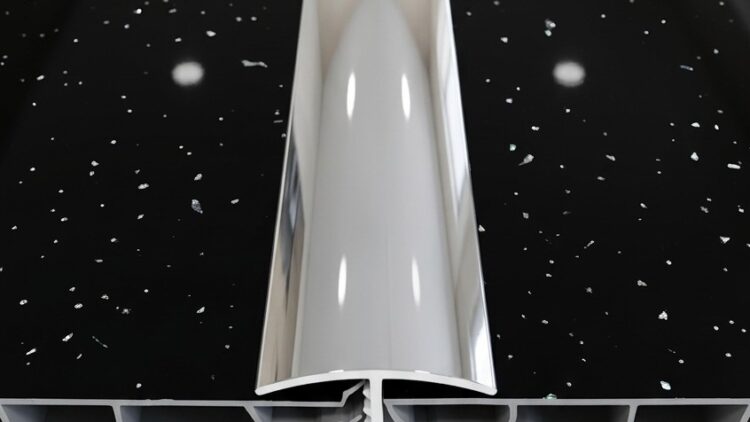

H Trim: Joining Panels End to End

Standard panel lengths do not always stretch the full height or width of a wall, particularly in taller rooms or long commercial corridors. An H trim, named for its cross-section, is the finishing trim used to join two panels end to end while still hiding the seam between them.

This type is especially useful when cladding a stairwell, a double height bathroom wall, or any run where a single panel simply will not reach, allowing the installer to extend coverage without a visible gap.

An H trim also comes in handy on repair jobs, where only a section of an existing wall needs replacing rather than the full run. Joining new panelling into an existing scheme with the correct finishing trim keeps the repaired section looking intentional rather than patched. Our H trim in chrome is a popular choice where panels need to be extended without the join standing out.

Coving and Quadrant Trim for Ceiling Junctions

Where a wall meets a ceiling, a rounded coving profile or a squarer quadrant profile is normally used instead of a straight edge. Both are a type of finishing trim built specifically for that junction, covering the join and giving a soft, curved transition rather than a hard cut line.

Choosing between the two styles usually comes down to preference, since a coving profile gives a more traditional look while a quadrant trim suits a sharper, more contemporary finish.

Choosing Colour and Thickness for Your Finishing Trim

Most ranges are available in white and chrome, so the trim can either blend into a light panel scheme or add a contrasting metallic edge against darker colours. Matching every trim on a job to the same finish keeps the overall look consistent from corner to ceiling.

Thickness matters too. Panels typically come in 5mm, 8mm, or 10mm depths, and each finishing trim needs to be ordered in the matching thickness so the channel sits flush against the panel edge rather than leaving a visible step. Our chrome coving trim is a good example of how a metallic finish can lift an otherwise simple panel scheme.

For larger orders spanning multiple trim types, it is worth calling 01253 591 717 to check current stock across the full range before finalising a parts list.

Frequently Asked Questions

Do I need a different finishing trim for every corner? Yes, in most cases. Internal and external corners use different profiles, so it is worth counting each corner type separately when planning your order.

Can trims be painted to match a different colour? It is not recommended. PVC trims are supplied in a finished colour and painting can affect the surface and reduce its water resistance over time.

Do all trims need adhesive? Most are fixed with panel adhesive, though some starter and corner profiles can also be lightly screwed in place before the panel conceals the fixing.

How much extra should I order? A little extra length on every trim is worth budgeting for, since offcuts, corner waste, and the occasional measuring error are normal on any first cladding project.

Plan Your Trims Today

Choosing the right finishing trim for every edge, corner, and join is what turns a good set of panels into a genuinely professional finish. Browse the full trims range online or call 01253 591 717 to talk through your project before you order.
